Description

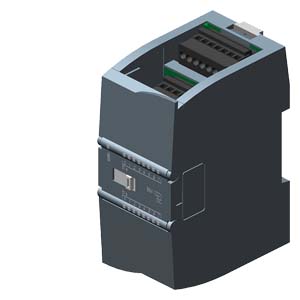

Order No.: 6AG1221-1BH32-4XB0 6AG12211BH324XB0 SIPLUS S7-1200 SM 1221 16DI, with conformal coating based on 6ES7221-1BH32-0XB0 . 16 DI, 24 V DC, Sink/Source6AG12211BH324XB0_datasheet_en
Overview
- Digital inputs as supplement to the integral I/O of the CPUs
- For flexible adaptation of the controller to the relevant task
- For subsequent expansion of the system with additional inputs
Application
Digital input modules allow the connection of the controller to digital signals of the process.
This provides users with the following advantages:
- Optimum adaptation:
With signal modules which can be mixed as desired, users can adapt their controllers exactly to the relevant task. This avoids superfluous investments. Modules with 8, 16, and 32 input/output channels are available. - Flexibility:
If the task is expanded subsequently, the controller can be upgraded. Updating of the user program is extremely simple.
Function
The SM 1221 digital input signal modules convert the level of the external digital signals from the process into the internal signal level of the S7-1200 controller.
