Description

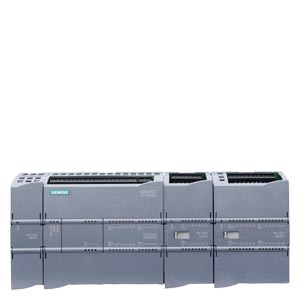

Order No.: 6AG1222-1BH32-4XB0 6AG12221BH324XB0 SIPLUS S7-1200 SM 1222 16DQ for medial exposure with conformal coating based on 6ES7222-1BH32-0XB0 . Digital output 16 DQ, 24 V DC, transistor 0.5 A6AG12221BH324XB0_datasheet_en
Overview
- Digital outputs as supplement to the integral I/O of the CPUs
- For flexible adaptation of the controller to the relevant task
- For subsequent expansion of the system with additional outputs
Application
Digital output modules permit the output of digital signals from the controller to the process.
This provides users with the following advantages:
- Optimum adaptation:
With signal modules which can be mixed as desired, users can adapt their controllers exactly to the relevant task. This avoids superfluous investments. Modules with 8, 16, and 32 input/output channels are available. - Flexibility:
If the task is expanded subsequently, the controller can be upgraded. Updating of the user program is extremely simple.
Function
The SM 1222 digital output signal modules convert the internal signal level of the SIMATIC S7-1200 Controller into the external signal level required for the process.
