Description
IWLAN client, SCALANCE W734-1, RJ45, 1 radio, 2 R-SMA antenna port, iFeatures support via key plug, IEEE 802.11a/b/g/h/n, 2.4/5GHz, gross data rate 300 Mbit/s, 2x RJ45 max. 100 Mbit/s, PoE integrated 2-port switch, redundant 24 V DC, terminal block, IP30, -20… 60 °C, plug slot WPA2/802.11i/e, observe national approvals! CERT ID: MSN-W1-RJ-E2, scope of delivery: Manuals on CD-ROM, German/English, 1x terminal block; only for operation in USA 6GK57341FX000AB0_datasheet_en
Overview
- Low-profile, compact aluminum enclosure, shock and vibration-proof for high mechanical requirements
- Implementation of simple and cost-effective wireless machine networking
- Support of the 2.4 and 5 GHz frequency band
- IP30 degree of protection
- For use at ambient temperatures from -20 °C to +60 °C
- 2 x R-SMA sockets for the connection of direct mountable and remote antennas
- Antenna placement optimized for the 2×2 MIMO technology; the antennas do not interfere with each other when they are mounted directly on the device
- 2 x RJ45 connector for 10/100 Mbit/s, of which one connector has Power-over-Ethernet compliant with IEEE 802.3at
- 2 x 24 V DC connection for redundant energy supply
- 1 x PLUG compartment for KEY-PLUG/C-PLUG
- Function LEDs for optical signaling of faults/errors and operating statuses
- Mounting: Wall, S7-1500 mounting rail, S7-300 mounting rail, or on 35 mm standard mounting rail
- SIMATIC design matches existing components in the control cabinet (e.g. ET 200MP, etc.)

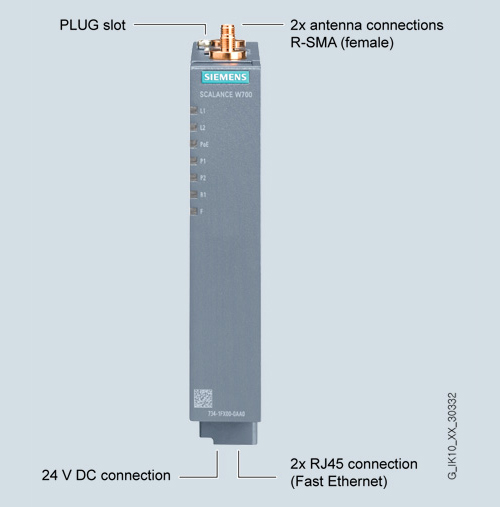

Design and interfaces of the SCALANCE W734 RJ45 client modules
