Description

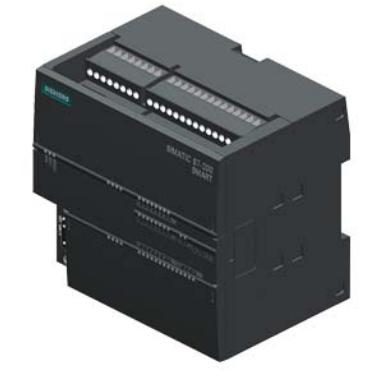

SIMATIC S7-200 SMART PLC SR30, The upgraded version of classic S7-200 PLC.
6ES7 288-1SR30-0AA0 6ES7288-1SR30-0AA0 6ES72881SR300AA0
Model No.: SMART PLC CPU SR30
Power Supply: AC 85-264VAC AT 47-63 HZ,
Output Type: 12 DO RELAY 2A;
Digital Input: 18 Bits DI 24 V DC
PROGRAM/DATA MEMORY: 30 KB
6ES72881SR300AA0_datasheet_enS7-200 SMART PLC CPU List
Central processing unit (CPU) | Order No. | |
CPU CR40 | CPU CR40, AC/DC/RELAY, 24DI/16DO | 6ES72881CR400AA0 6ES72881CR400AA1 |
CPU CR60 | CPU CR60, AC/DC/RELAY, 36DI/24DO | 6ES72881CR600AA0 6ES72881CR600AA1 |
CPU SR20 | CPU SR20, AC/DC/RELAY, 12DI/8DO | 6ES72881SR200AA0 6ES72881SR200AA1 |
CPU SR30 | CPU SR30, AC/DC/RELAY, 18DI/12DO | 6ES72881SR300AA0 6ES72881SR300AA1 |
CPU SR40 | CPU SR40, AC/DC/RELAY, 24DI/16DO | 6ES72881SR400AA0 6ES72881SR400AA1 |
CPU SR60 | CPU SR60, AC/DC/RELAY, 36DI/24DO | 6ES72881SR600AA0 6ES72881SR600AA1 |
CPU ST20 | CPU ST20, DC/DC/DC, 12DI/8DO | 6ES72881ST200AA0 6ES72881ST200AA1 |
CPU ST30 | CPU ST30, DC/DC/DC, 18DI/12DO | 6ES72881ST300AA0 6ES72881ST300AA1 |
CPU ST40 | CPU ST40, DC/DC/DC, 24DI/16DO | 6ES72881ST400AA0 6ES72881ST400AA1 |
CPU ST60 | CPU ST60, DC/DC/DC, 36DI/24DO | 6ES72881ST600AA0 6ES72881ST600AA1 |
STEP 7 MicroWIN SMART V2.5 download
http://w2.siemens.com.cn/download/smart200/STEP%207%20MicroWIN%20SMART%20V2.5.iso
STEP 7 MicroWIN SMART V2.7 download
https://w2.siemens.com.cn/download/smart200/STEP7%20MicroWIN%20SMART%20V2.7.7z
S7-200 SMART ST and SR CPU Firmware V2.7 download
For the CPU version after V2.6, with CPU MLFB end with -0AA1
Help document for firmware update.
—- s7-200_smart_firmware_update_cpu_V2_7_en-US.pdf
ST/SR CPU V2.7 firmware file download:
—- Firmware_V2.7_update_files_for_customers.zip (23,6 MB)
S7-200 SMART ST and SR CPU Firmware V2.5 download
For the old CPU version before V2.5, with CPU MLFB end with -0AA0
Help document for firmware update:
—- s7-200_smart_firmware_update_cpu_V2_5_1_en-US.pdf (322,7 KB)
ST/SR CPU V2.5.1 firmware file download:
S7-200 SMART CR CPU Firmware download
CR CPU V2.2.3 firmware file download:
