Description

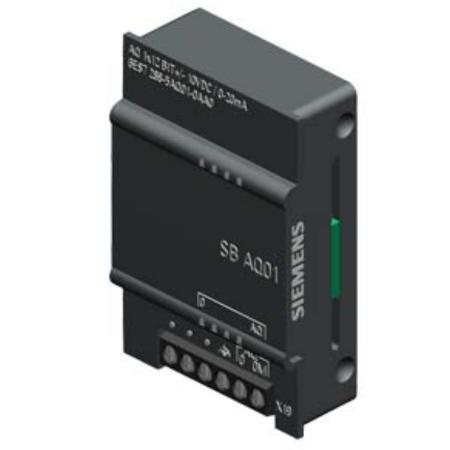

SIMATIC S7-200 Smart PLC signal board AQ01 1AO 6ES72885AQ010AA0
6ES7288-5AQ01-0AA0 6ES72885AQ010AA0
SIMATIC S7-200 SMART, Analog output SB AQ01, 1 AO, +/-10 V DC (12 bit resol.) or 0-20mA (11 bit resol.)
It provides additional analogue I/O extension, and support 1 analogue output, with a precision 12 bits.
6ES72885AQ010AA0_datasheet_enS7-200 Smart Signal board list
| Signal board (SB) | Order No. | Description | |
| EM AE01 | SIGNAL BOARD SB AE01, 1 AI x 12 bit input | 6ES72885AE010AA0 | It provides additional analog I / O expansion, and support 1Analog input , the precision is 12 bits |
| EM AQ01 | SIGNAL BOARD SB AQ01, 1 AO | 6ES72885AQ010AA0 | It provides additional analogue I/O extension, and support 1 analogue output, with a precision 12 bits. |
| EM BA01 | 200SMART BATTERY BOARD | 6ES72885BA010AA0 | It supports the generic CR1025 cell (battery), which can drive the clock for about 1 year. |
| EM CM01 | COMMUNICATION MODULE CM 01, RS485 | 6ES72885CM010AA0 | It provides additional RS232 or RS485 serial communication interface, the conversion can be realized via simple configuration in the software. |
| EM DT04 | SIGNAL BOARD SB DT04, 2 DI/2 DO | 6ES72885DT040AA0 | It provides additional digital I/O extensions, and support 2 digital inputs and 2 digital transistor outputs. |
