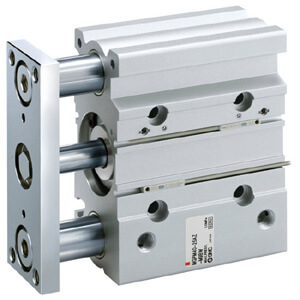

MGP-AZ Standard Guided Cylinder with Air Cushion

The MGP-AZ is a compact body actuator integrated with internal guide shafts
to isolate the load bearing from the movement of the actuator’s rod and
seals. The air cushions allow the guided cylinder to absorb nearly three
times as much kinetic energy as standard rubber bumpers while suppressing
noise and vibration at the stroke end. The (A) press fitted high precision
ball bushing is suitable for minimizing the actuator’s plate displacement.
The (L) high precision ball bushing allows for smooth operation that
ensures stable travel resistance, suitable for pushing and lifting
applications. The (M) carbon steel alloy slide bearing provides lateral
stability protecting it from side load impacts, suitable for stopping
applications.

– Bore sizes: 16, 20, 25, 32, 40, 50, 63, 80, 100 mm
– (A) Press fitted high precision ball bushing non-rotating accuracy:
+/-0.01° (all bore sizes)
– (L) Ball bushing non-rotating accuracy: +/-0.05° (100 mm) to +/- 0.10°
(16 mm)
– (M) Slide bearing non-rotating accuracy: +/-0.04° (100 mm) to +/-
0.08° (16 mm)
– Air cushions as standard
– Auto switch capable

Download MGP-AZ Datasheet by click the link Datasheet.
