Description

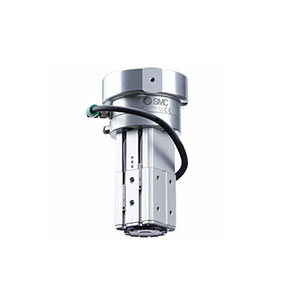

Series MHM-7400A-HC10 is a magnetic gripper that is compliant with Yaskawa
Electric Corporation, Motoman-HC10/HC10DT collaborative robots. It can be
used in place of vacuum cups or grippers when holding a metallic
workpiece. Auto switches can be mounted on 2 surfaces. Expanded mounting
options include body tapped, lateral, and central.
– Steel plates can be transferred without a vacuum
– Supports workpieces with holes, uneven, and complex surfaces where a
vacuum pad cannot be used
– Holds workpieces even when air is shut off
– High holding force up to 200 N
Download MHM-X7400A-HC Datasheet by click the link Datasheet.
