Description

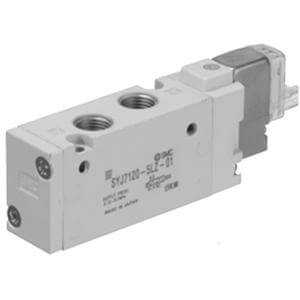

The SYJ Valve is an innovative combination of space efficiency and
performance superiority which provides real value to the design solution.
Whether designed in a manifold or used as a single valve, this small
profile increases design flexibility and minimizes space requirements. The
SYJ valve utilizes a low power (0.5 watts standard) pilot solenoid design,
which dramatically reduces thermal heat generation. This improves
performance, decreases operating costs, and allows for direct control by
PLC output relays. All electrical connections for SYJ Valves are available
with lights and surge suppression. SYJ series valves can be configured on
base mounted manifolds, or individually on sub-plates, creating a variety
of solutions to meet your broadest engineering needs.
– Fluid: air
– Operating pressure range: 0.1 – 0.7MPa
– Cv factor: body ported range 0.48 – 0.6;
base mounted 0.7
– Coil rated voltage: 3, 5, 6, 12, 24VDC;
100, 110, 200, 220VAC
– Ambient & fluid temp: max. 50° C
Download SYJ7000 Datasheet by click the link Datasheet.
