Description

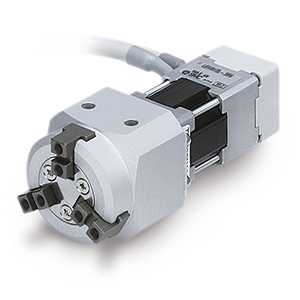

The LEHS series electric grippers are equipped with three fingers, offering
the ability to hold round work pieces. Four sizes are available. Benefits
include adjustable gripping forces, a drop prevention function, and gauging
capability for recognizing different dimensions and outputting length
measurements.
– Body sizes: 10, 20, 32, 40
– Compact motor option available: 10, 20
– Stroke / diameter: 4 to 12 mm
– Gripping force range: 1.4 to 130 N
– Manual adjustment screw for moving fingers with power off
– Controllers & Drivers * 24VDC Step Motor Controller
Download LEHS Datasheet by click the link Datasheet.
