Description

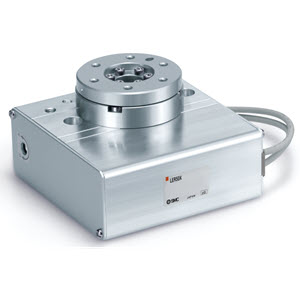

The original LER is capable of 90°, 180°, or 310 / 320° rotation from the
home position. Suitable applications will require a repetitive
rotate-and-return motion, such as parts transfer with reorientation.
– Body sizes: 10, 30, 50
– Rotation angles: 310° (10); 320° (30, 50); 90°, 180° (external
stopper)
– Maximum torque: 6.6 N•m
– Positioning repeatability: ±0.05° (±0.01° at end with external
stopper)
– Backlash: ±0.5°
Download LER Datasheet by click the link Datasheet.
