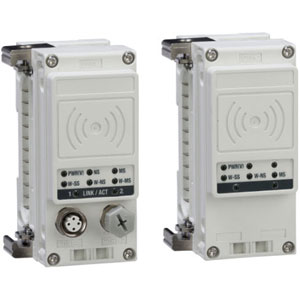

Description
The EX600 serial interface offers a full suite of diagnostics and
programmable parameters to meet the most stringent requirements. Up to
1024 (512/512 I/O blocks) and 7 valve manifolds can be connected. The
EX600 can be configured as a centralized or a de-centralized I/O system, or
a combination of both. This serial interface is compatible with series
SV1000/2000/3000, VQC1000/2000/4000 and S0700 valves. Available protocols
include Profibus-DP, DeviceNet™, CC-Link, EtherCat and EtherNet/IP™. The
EX600 wireless cannot be used in countries where wireless is not
supported. Refer to the catalog for details of countries where wireless is
supported.
– Fieldbus: EtherNet/IP™, PROFINET
– Output Method: PNP, NPN
– Number of I/O points: 1280 inputs/1280 outputs
– Enclosure: IP40 & IP67 (Manifold Assembly)
– Operating temp. range: -10 to +50°C
– Standards: CE marking, RoHS compliant
– Weight: 280g & 300g
Download EX600-W Datasheet by click the link Datasheet.
